Aktiv subwoofer med 10" basenhed.

Active subwoofer system, 200WMAX, 120WRMS

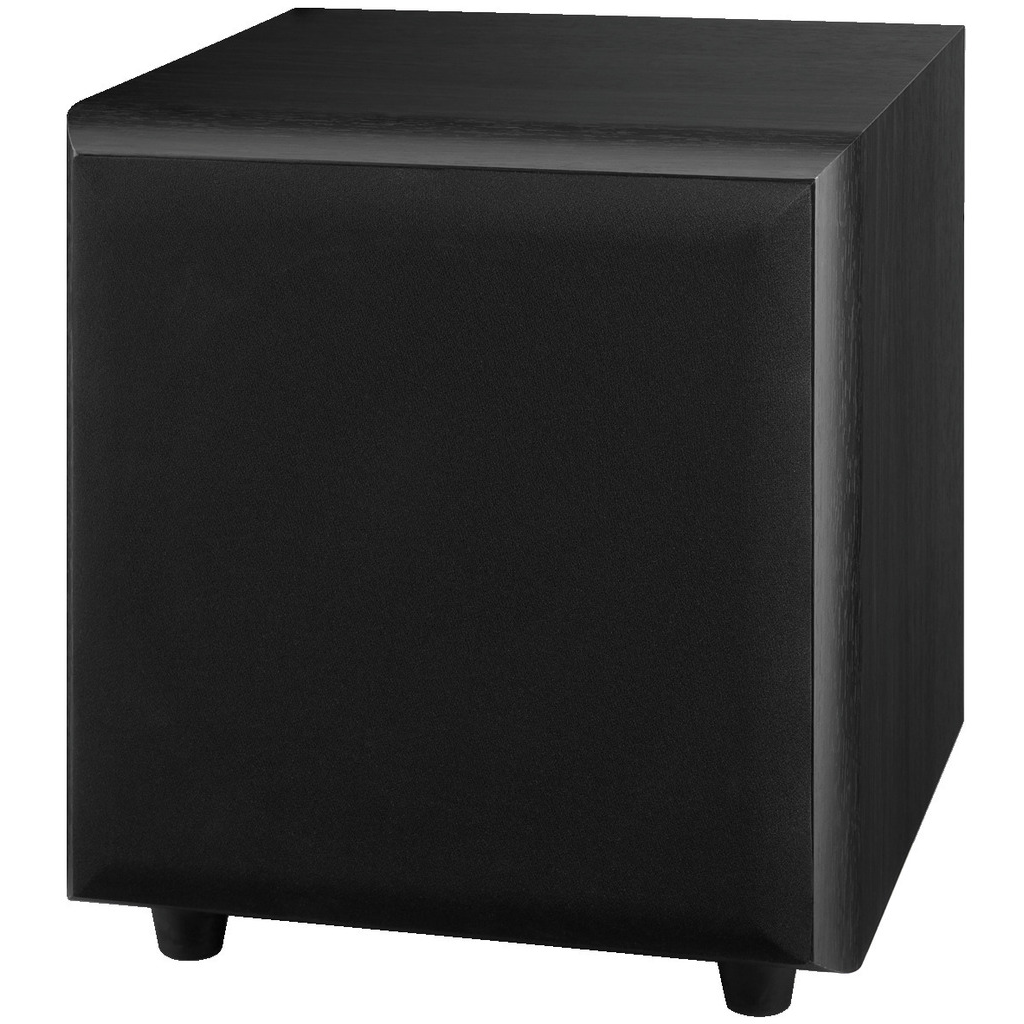

Active subwoofer with 25cm (10") bass speaker providing a pulsed sound and a good bass response, perfect configuration for adding to the active SOUND speaker systems from IMG Stage Line. However, also ideally suited as a bass addition to other compact speakers in the HiFi range, for home cinema applications or home recordings. Beside the variable input sensitivity, a phase switch and an automatic switch-on system which can additionally be activated, the amplifier features an adjustable crossover frequency and various inputs which allow for a connection to any system (RCA stereo IN, RCA mono IN and stereo high-level IN for direct connection to existing speaker cables). In case of the connection to already existing speaker cables, additional outputs are available for connecting the mid-high range speakers. Setup in a high-quality bass-reflex MDF cabinet in a black veneer look.

TEKNISKE DATA:
Frequency range 35-100Hz
Amplifier power 200WMAX, 120WRMS
Inputs 150mV/24kO (RCA L/R)
55mV/16kO (RCA mono)

2.3V/440O (high IN)

SPL (1W/1m) 88dB
Max. rated SPL 108dB
Admiss. ambient temp. 0-40 °C
Power supply 230V˜/50Hz/240VA
Dimensions (WxHxD) 330x360x360mm
Weight 13kg
Connections 1 x RCA (L/R), unbal., IN
1 x RCA (mono), unbal., IN

1 x screw terminal (stereo), high level IN

1 x screw terminal (stereo), high OUT
