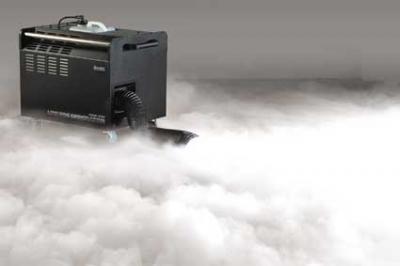

LOW FOG GENERATOR DNG-200

The DNG-200 Low Fog Generator is the complete ground fog effect solution from a fully self-compacted unit with wheels and handles to stand against tough transport. With today´s rising demand & awareness for environmental and health concern, the effects produced is virtually indistinguishable from that is created by dry ice.
As no pollution to environment and to any human body which makes DNG-200 a true green machine.

Distinctively from other products currently on the market, it creates low fog straight from machine’s nozzle. This makes it far more efficient and convenient without any hassles of CO2 installations and other attachments. It is operator-friendly as there are no external controls to the machine. Simply plug the unit and place the 3M fog conducting hose (for remote dispersion) and operate it like a normal fog machine.

With powerful compressor and aluminum heater block, 3 variable fog output can be selected from a tiny cloud to the thickest fog. It is fully controllable via a LCD DMX 512 controller allowing the operator to set the volume control and timing precisely. Furthermore, the after-service maintenance is trouble-free as the compressor and the heater are in two different contained locations.

Electricity is saved due to high efficient power control system and superior ventilation, thus permitting the fogger to operate at optimal low-level temperature. The 10-liter tank also offers non-stop power enables extended use between refills. No doubt DNG-200 will be an impressive effect for theatrical and studio applications where noise level should be minimized and environment/health issues are concerned.

Just turn it on and let DNG-200 do the rest.

» Power : AC 100~120V/ 50~60Hz AC 220~240V / 50~60Hz
» Power Consumption (Compressor) : 750 W 600W
» Refrigerant : R-404A, 1.75LB R-404A, 1.75LB
» Rated Current : 6.7A 3.2A
» Start Current : 61 A 21 A
» Heater : 1450W 2500W
» Output : 12,000 cu.ft / min 12,000 cu.ft / min
» First Heat-Up Time : 24 min 12 min
» Tank Capacity : 10 liters 10 liters
» Fluid Consumption Rate : 11 min/ liter (High output) 11 min/ liter (High output)
» Remote Included : D-20 (LCD Timer Panel Controller: 2M)
» Accessory Included : 3M Fog Conducting Hose
» Optional Accessory : DNG-200 flightcase
» Weight : 120 Kg
» Dimensions (mm) : L 780.0 x W 608 x H 688 (mm)
» Liquid Used : Antari FLR (Light Fog Liquid) Only
» DMX Channel DMX : One Channel
» Additional information : Self Contained Unit-- No CO2 / Dry Ice Required
Floor-Mount installations (4 wheels)

D-20
» Cable Length: 2 M.
» Connector: 5 Pin XLR
» Function: Timer with interval, duration and volume
4 Volume output choices (with non-stop fogging)
Set DMX addresses: manual ON/OFF.
All above functions are displayed on a LCD screen and can be set precisely in
seconds or percentage
» Compatible With: DNG-200
