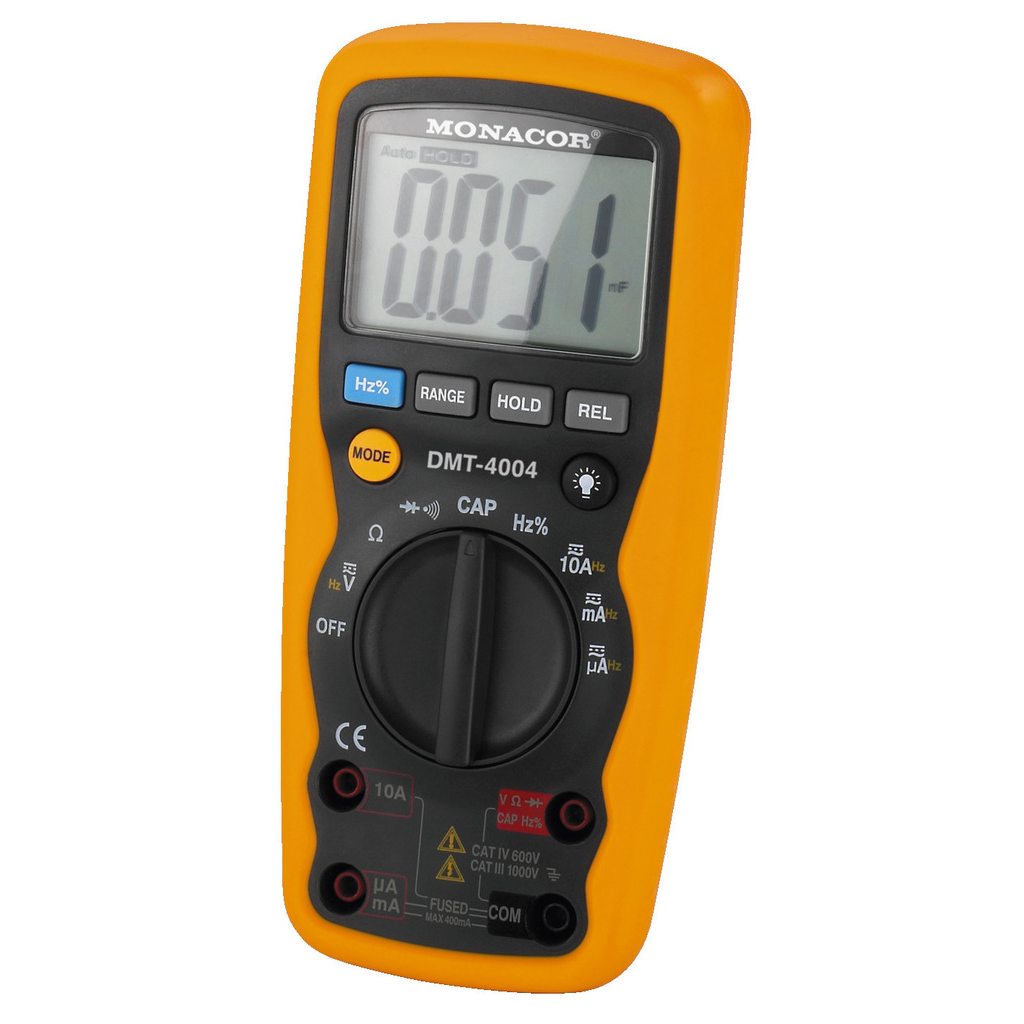

Digital multimeter,

for professional applications.

Protected against dust and water according to IP67 when test jacks are covered
Autoranging for faster measurements
Resolution: 4,000 digits, basic accuracy: 0.5%
Voltage measurement: up to 1,000V DC current /˜
Current measurement: up to 10A DC current /˜
Frequency measurement: up to 10MHz
Resistance measurement: up to 40MO
Capacitance measurement: up to 200µF
Acoustic continuity test
Diode test
Data hold (storage of measured value)
Reference value measurements
LCD with switchable backlight
Automatic switching off
Overload protection
Supplied with test leads and protective bag

TEKNISKE DATA:
Display 29mm LCD, 3 ¾ digits
Range selection automatic,
manual
Measuring ranges
Voltage
5 ranges
400mV DC current ?- 1,000V DC current

400mV˜?- 1,000V˜

Current
5 ranges
400µA DC current ?- 10A DC current

400µA˜?- 10A˜

Resistance
6 ranges
400O-40MO

Frequency
7 ranges
9,999Hz - 9,999MHz

Capacitance
6 ranges
4nF - 200µF

Temperature
-
Battery test
-
Admiss. ambient temp. 0-50 °C
Dimensions 83x180x54mm
incl. rubber holster?

Weight 490g
Power supply 9V battery (not supplied)
Special features diode test and continuity test,
hold function, IP67
