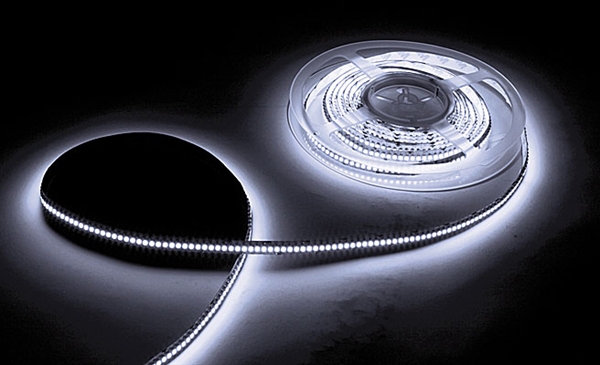

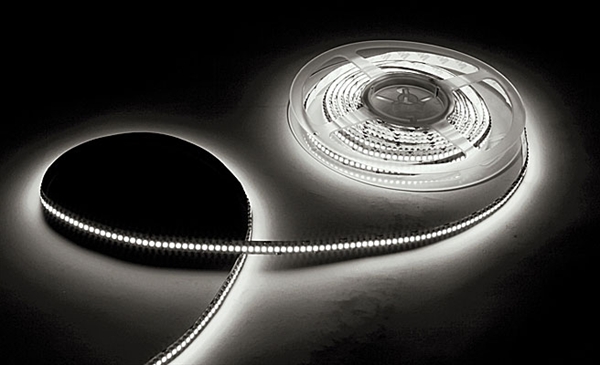

The PROLED FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of background lighting. Due to their shallow design and the individually adaptable lengths the PROLED FLEX STRIPS offer a wide spectrum of application possibilities.
High flexibility – adaptable to round shapes.
Installation with 3M adhesive tape on the strip’s backside (self adhesive).
dimmable or DMX 512, DALI, 1-10 V controllable by MBNLED RGB MULTI power supplies/controller


Technical Data
IP classification: IP20
Power source: 24 VDC
Electrical connection: 2x cable with 2-PIN to open wires
Maximum quantity per power input: 5 m
Operating temperature range: –10° C till +45° C

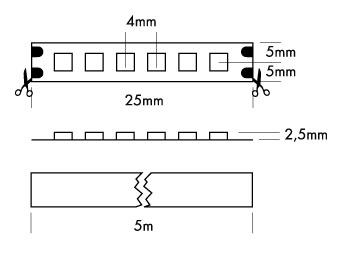

Width x height: 15 x 2,5 mm

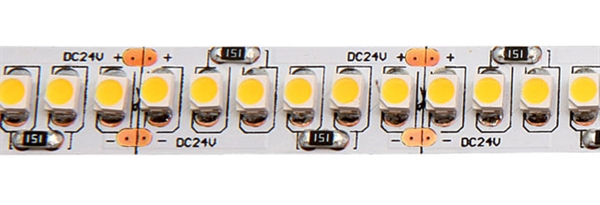

Cuttable: all 6 LEDs (2,5 cm)

Photometric Data
LED type: SMD CHIP EXTRA BRIGHT
Luminous flux:

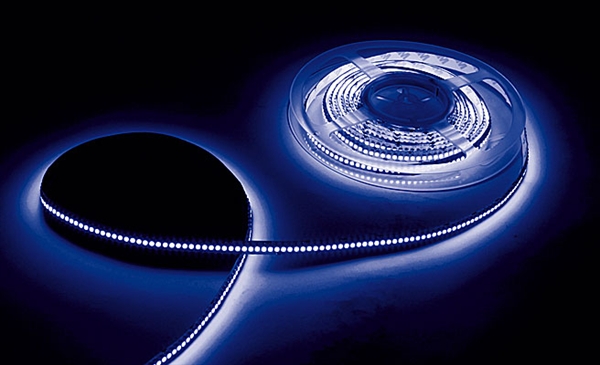

blue 240 Lumen per m
white 1600 Lumen per m
neutral white 1750 Lumen per m
warm white 1750 Lumen per m
2700 K 1700 Lumen per m
Wave length:
blue 465 nm
Colour temperature:
white 6000–8000 K
neutral white 4000–4500 K
warm white 2900–3500 K
2700 K 2500–2800 K
CRI:
white 70+
neutral white 70+
warm white 60+
2700 K 60+
Beam angle: 120°

order code, colour, length, LED pcs, LED power, power consumption*, weight
L6726S 2700 K 500 cm 1200 96 Watt 80-96 Watt 0,17 kg
L6706S warm white 500 cm 1200 96 Watt 80-96 Watt 0,17 kg
L6708S neutral white 500 cm 1200 96 Watt 80-96 Watt 0,17 kg
L6704S white 500 cm 1200 96 Watt 80-96 Watt 0,17 kg
L6701S blue 500 cm 1200 96 Watt 80-96 Watt 0,17 kg
*Actual power consumption
