The PROLED FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of background lighting. Due to their shallow design and the individually adaptable lengths the PROLED FLEX STRIPS offer a wide spectrum of application possibilities.
High flexibility – adaptable to round shapes.
Installation with 3M adhesive tape on the strip’s backside (self adhesive).
dimmable or DMX 512 controllable by MBNLED RGB DMX power supplies/controller

Technical Data
IP classification: IP20
Power source: 12 VDC
Electrical connection: 2x cable with 2-PIN to open wires
Maximum quantity per power input: 5 m
Operating temperature range: 10° C till +45° C

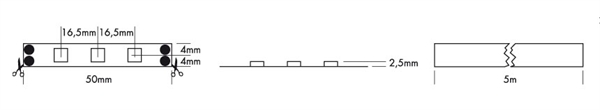

Width x height: 8 x 2,5 mm

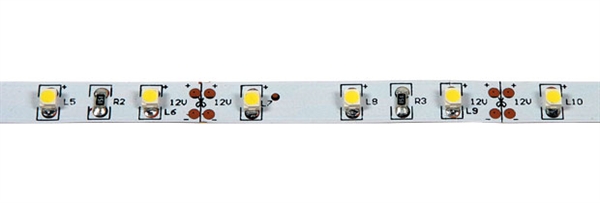

Cuttable: all 3 LEDs (5 cm)

Photometric Data
LED type: SMD CHIP
Luminous flux:
red 100 Lumen per m
green 232 Lumen per m
blue 50 Lumen per m
amber 70 Lumen per m
white 222 Lumen per m
neutral white 220 Lumen per m
warm white 230 Lumen per m
2700 K 226 Lumen per m

Wave length:
red 623 nm
green 528 nm
blue 464 nm
amber 592 nm

Colour temperature:
white 6000–8000 K
neutral white 4000–4500 K
warm white 3000–3500 K
2700 K 2500–2900 K

CRI:
white 82
neutral white 70
warm white 64
2700 K 64

Beam angle: 120°
