The PROLED FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of background lighting. Due to their shallow design and the individually adaptable lengths the PROLED FLEX STRIPS offer a wide spectrum of application possibilities.

3 colours on one chip, therefore 100% smooth colour mixing.
High flexibility – adaptable to round shapes.
Installation with 3M adhesive tape on the strip’s backside (self adhesive).
dimmable, automatic colour change, DMX 512 controllable by MBNLED RGB DMX power supplies/controller
Technical Data
IP classification: IP20
Power source: 12 VDC Common Anode (CA)
Electrical connection: 2x cable with 4-PIN to open wires
Maximum quantity per power input: 5 m
Operating temperature range: –10° C till +45° C

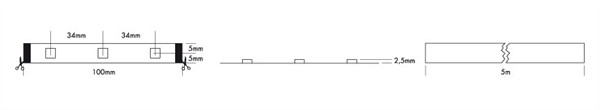

Width x height: 10 x 2,5 mm
Cuttable: all 3 LEDs (10 cm)

Photometric Data

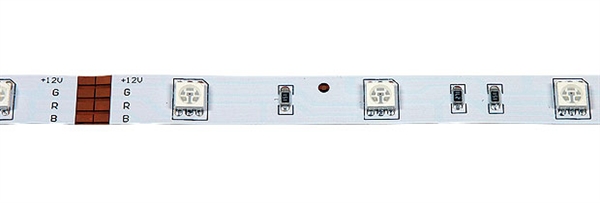

LED type: SMD RGB 3-in-1 LEDs
Luminous flux: red 22 Lumen per m
green 126 Lumen per m
blue 28 Lumen per m
r+g+b (white) 172 Lumen per m
Wave length: red 621 nm
green 528 nm
blue 467 nm
Beam angle: 120°

order code: L6200
colour: rgb
length: 500 cm
LED pcs: 150x
LED power 36 Watt
power consumption*: 27-36 Watt
weight: 0,12 kg
