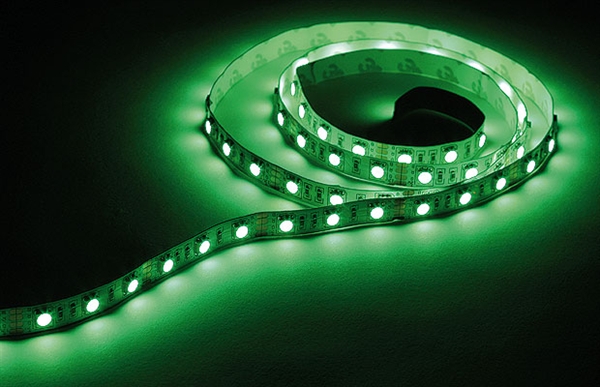

The PROLED FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of background lighting. Due to their shallow design and the individually adaptable lengths the PROLED FLEX STRIPS offer a wide spectrum of application possibilities.
3 colours on one chip, therefore 100% smooth colour mixing.
High flexibility – adaptable to round shapes.
Installation with 3M adhesive tape on the strip’s backside (self adhesive).
dimmable, automatic colour change, DMX 512 controllable by MBNLED RGB DMX power supplies/controller

Technical Data
IP classification: IP20
Power source: 24 VDC Common Anode (CA)
Electrical connection: 2x cable with 4-PIN to open wires
Maximum quantity per power input: 5 m
Operating temperature range: –10° C till +45° C

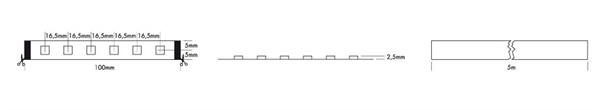

Width x height: 10 x 2,5 mm

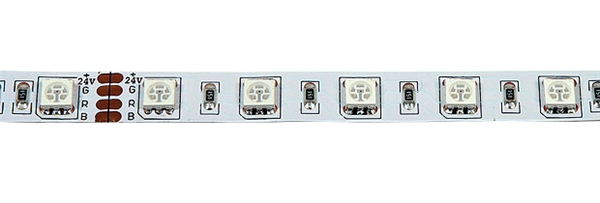

Cuttable: all 6 LEDs (10 cm)

Photometric Data

LED type: SMD RGB 3-in-1 LEDs
Luminous flux: red 36 Lumen per m
green 242 Lumen per m
blue 52 Lumen per m
r+g+b (white) 326 Lumen per m
Wave length: red 623 nm
green 528 nm
blue 465 nm
Beam angle: 120°

order code - colour - length - LED pcs - LED power - power consumption* - weight
L6507 - RGB - 500 cm - 300x 3 - 72 Watt - 54-72 Watt - 0,12 kg
*Actual power consumption
