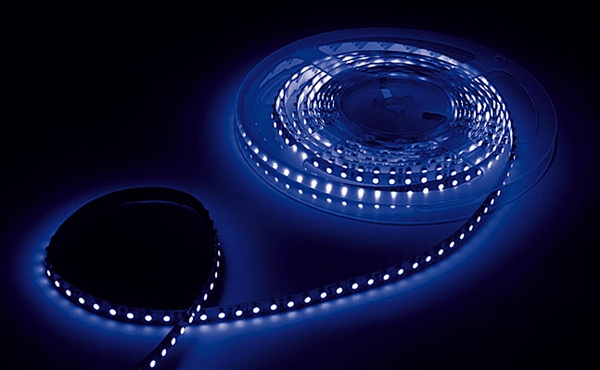

The PROLED FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of background lighting. Due to their shallow design and the individually adaptable lengths the PROLED FLEX STRIPS offer a wide spectrum of application possibilities.
High flexibility – adaptable to round shapes.
Installation with 3M adhesive tape on the strip’s backside (self adhesive).
dimmable or DMX 512 controllable by MBNLED RGB DMX power supplies/controller

Technical Data
IP classification: IP20
Power source: 24 VDC
Electrical connection: 2x cable with 2-PIN to open wires
Maximum quantity per power input: 5 m
Operating temperature range: –10° C till +45° C
Width x height: 8 x 2,5 mm
Cuttable: all 6 LEDs (5 cm)

Photometric Data
LED type: SMD CHIP
Luminous flux:
blue 90 Lumen per m
white 450 Lumen per m
neutral white 440 Lumen per m
warm white 460 Lumen per m
2700 K 452 Lumen per m
Wave length:
blue 465 nm
Colour temperature: Weiß 6000–8000 K
Neutral weiß 4000–4500 K
Warm weiß 3000–3500 K
2700 K 2500–2900 K
CRI: white 6000–8000 K
neutral white 4000–4500 K
warm white 3000–3500 K
2700 K 64
Beam angle: 120°

order code, colour, length, LED pcs, LED power, power consumption*, weight
L6626 2700 K 500 cm 600 48 Watt 40-48 Watt 0,13 kg
L6606 warm white 500 cm 600 48 Watt 40-48 Watt 0,13 kg
L6608 neutral white 500 cm 600 48 Watt 40-48 Watt 0,13 kg
L6604 white 500 cm 600 48 Watt 40-48 Watt 0,13 kg
L6601 blue 500 cm 600 48 Watt 40-48 Watt 0,13 kg
*Actual power consumption
