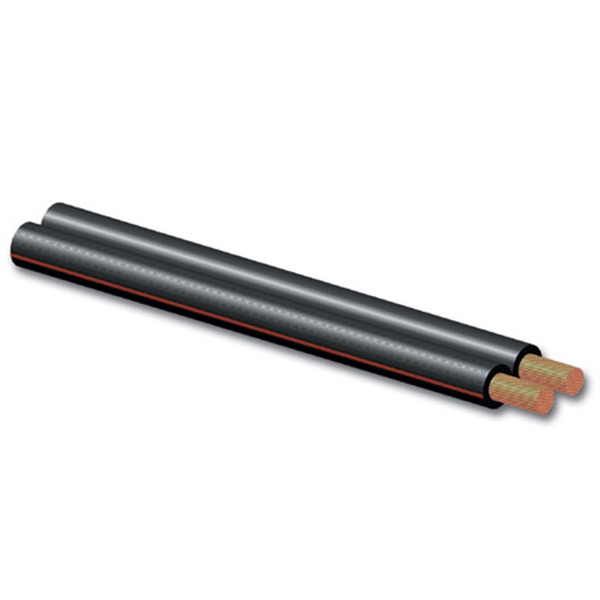

The RZ series cables are parallel designed loudspeaker cables with a maximum flexibility and strength. They are mostly used for indoor applications. Each conductor is fitted with a highly flexible jacket of PVC. The two parallel conductors are in black color and one of the two has a thin red line to identify the polarity. The RZ series cables are "all-round" loudspeaker cables suited for all kinds of applications on loudspeaker level.

Technical Data:
•Art No.: KCRZ15
•Type of cable: Speaker cable
•2 conductors: BC 20 x 7 x 0.12 mm
•Conductor section: 1,5 mm²
•Outer jacket color: Black with red molded line
•Outer jacket: Flexible PVC
•Outer jacket dimensions: Ø 3 x 6 mm
•Printing color: white
•Printing text: Procab RZ15
•Type of packing: ?Plastic reel for 100 meter
?Plastic reel for 500 meter

•Lead resistance: 1.2 ohm - 100 meter
•Cable cross-talk: Min. 74 dB - 100 meter
•Capacitance lead to lead: 95 pF - meter 1 kHz

Mechanical Data:
•Temperature range fixed installation: ?Fixed installation: -40° C to +80° C
?Flexible installation: -25° C to +70° C

•Bending radius : ?Fixed installation: 8 x outer diameter
?Flexible installation: 10 x outer diameter
