Funktionel mixer med 2 mikrofon- og 2 linieindgange. 2 udgange med individuel regulering.

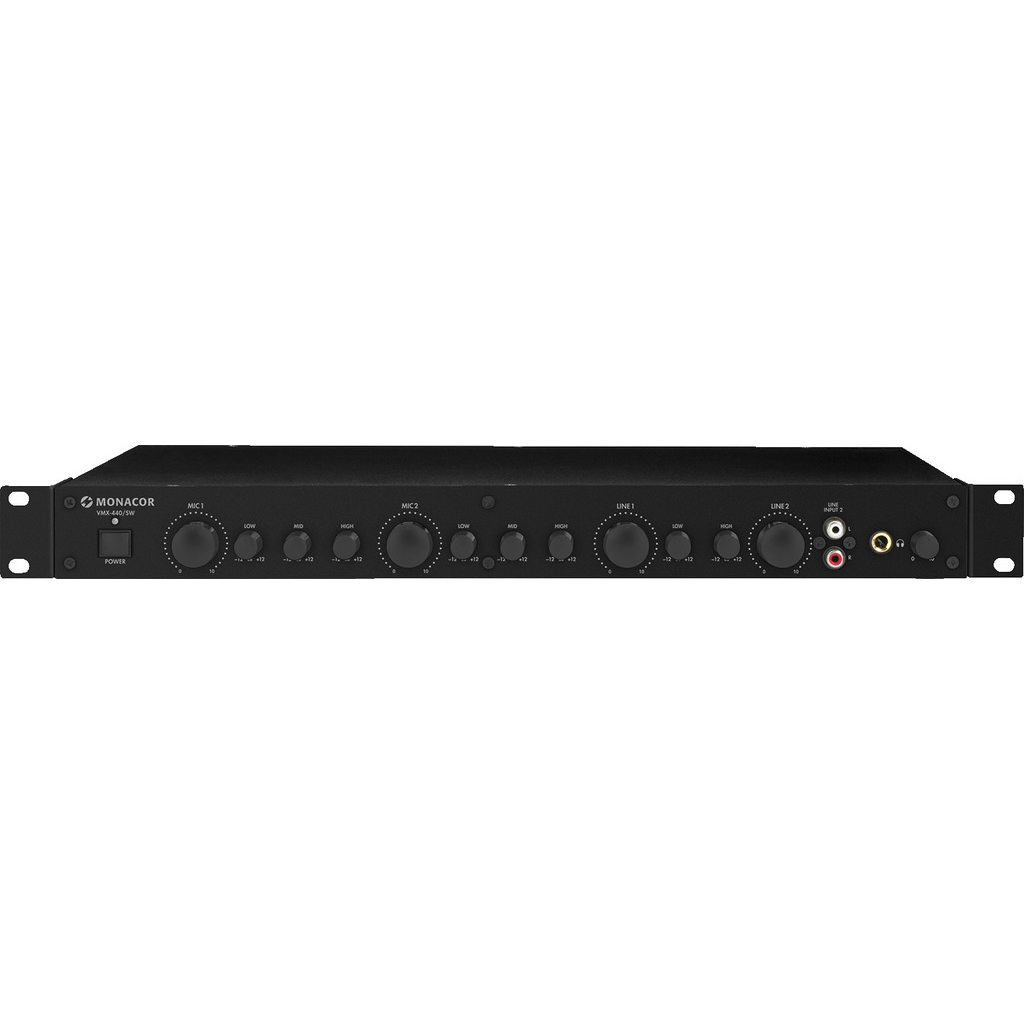

4-channel voice/music mixer

Mixing made easy! An easy-to-use operating concept and clearly arranged features. Two stereo line sources and two mono microphone sources can be mixed together without any problems. Each input channel features a tone control. The master output levels can be preadjusted via recessed trimming potentiometers in order to protect them against overload. An optional remote switch can mute the stereo master outputs.

2 stereo line inputs
2 balanced microphone inputs
Parallel stereo line input on the front panel
3-way equalizer for each microphone input
Common 2-way tone control for the two line inputs
Muting via optional momentary push-button or switch
2 adjustable stereo master outputs
Master output level can be preadjusted via trimming potentiometers
Adjustable headphone output
Stereo record output
482mm (19") rack installation, 1RS, with supplied mounting brackets

TEKNISKE DATA:
Line input, stereo 100mV/10kO
Microphone input 1mV/600O
Master output, stereo 1-3V/100O
Record output, stereo 1V/100O
Headphones, stereo = 32O, 2 x 15mW
Frequency range 20-20,000Hz
THD 0.05%
S/N ratio > 60dB
Equalizer, bass ±12dB/30Hz
Equalizer, midrange ±12dB/1kHz
(voice only)?

Equalizer, treble ±12dB/12kHz
Power supply 230V˜/50Hz/10VA
Admiss. ambient temp. 0-40 °C
Dimensions 482x45x274mm, 1RS
Weight 2.9kg
Line input, stereo 3?x RCA L/R
Microphone input 2 x 6.3mm jack, bal.
Master output, stereo 2 x RCA L/R
Record output, stereo 1 x RCA L/R
Headphones 1 x 6.3mm jack
Mute screw plug-in connection
