Indbygget limiter og elektronisk delefilter. Display der viser driftstemperatur og hvilken mode, forstærkeren arbejder i.

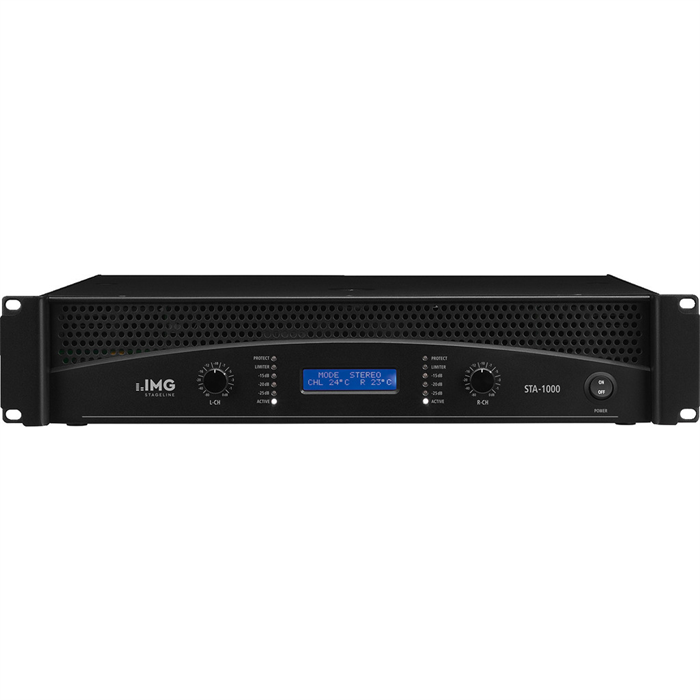

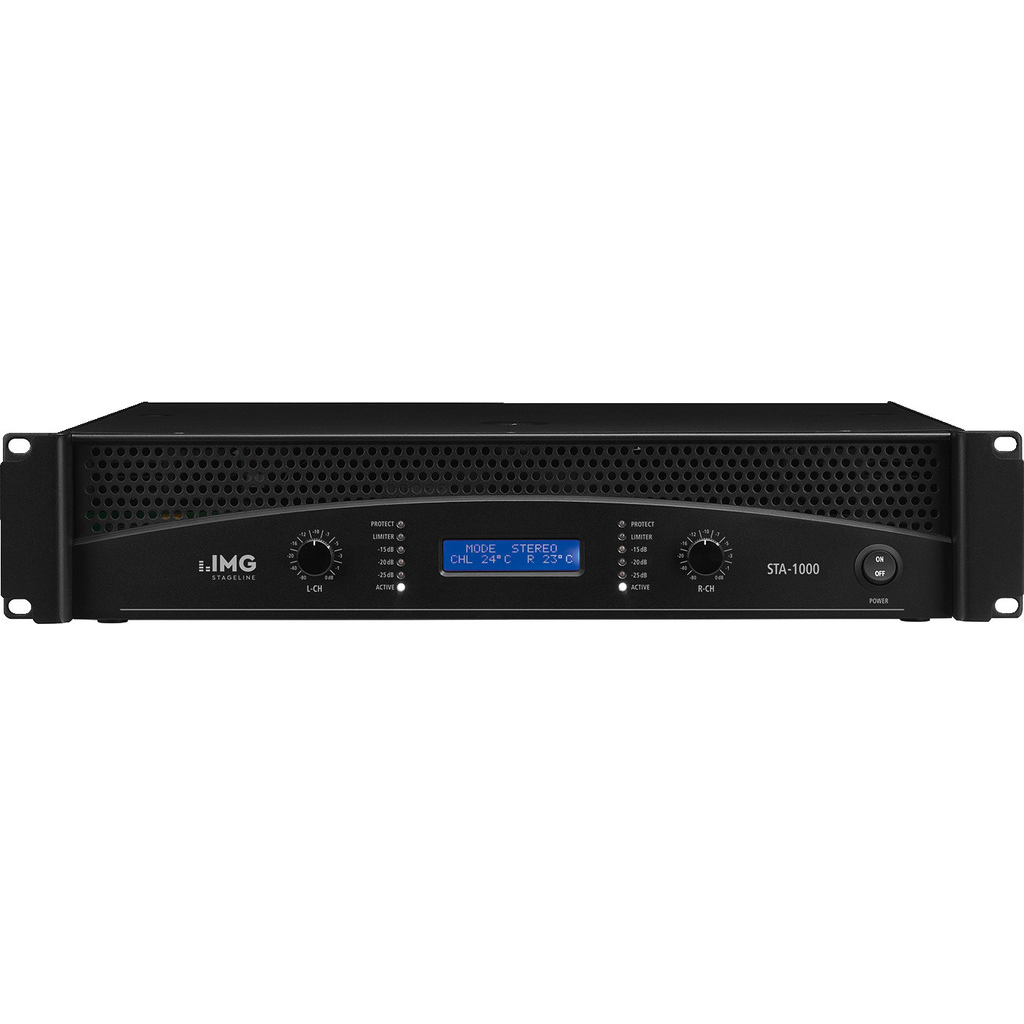

Professional stereo PA amplifier,
with integrated crossover network and limiter.

•3 operating modes can be selected (stereo, parallel or bridged)
•Integrated crossover network: 120Hz, 24dB/oct., switchable subwoofer, full range or satellite operation
•LCD for temperature, operating mode, protective function
•Temperature-controlled fan
•2 level controls
•Ground lift function
•Speaker switch-on delay
•Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
•LEDs for each channel for operating voltage, level and limiter
•NEUTRIK SPEAKON connections

TEKNISKE DATA:
Stereo 2O -
Stereo 4O 2 x 500WRMS
Stereo 8O 2 x 350WRMS
4O bridge operation -
8O bridge operation 1 x 1,000WRMS
Max. power 1,600WMAX
Inputs 1V/20kO
Frequency range 20-20,000Hz
S/N ratio > 95dB
Crosstalk attenuation > 60dB
THD < 0.1%
Power supply 230V˜/50Hz/1,600VA
Admiss. ambient temp. 0-40 °C
Dimensions 482x88x418mm, 2RS
Weight 15kg
Connections
Inputs (for each channel) XLR, bal.
6.3mm jack, bal.

Outputs (for each channel) NEUTRIK SPEAKON
speaker screw terminals
