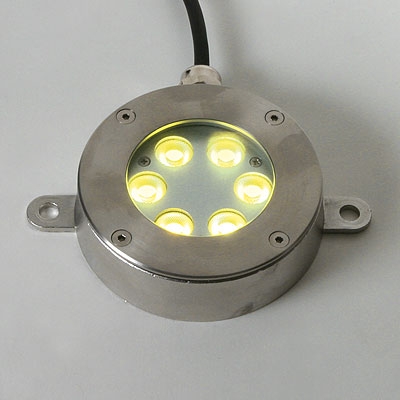

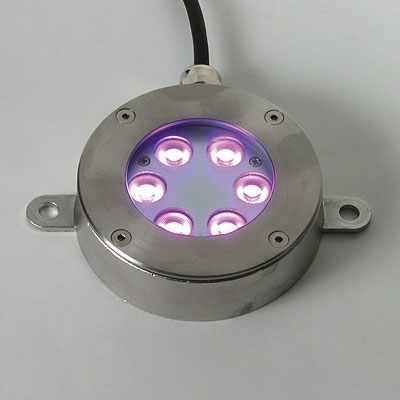

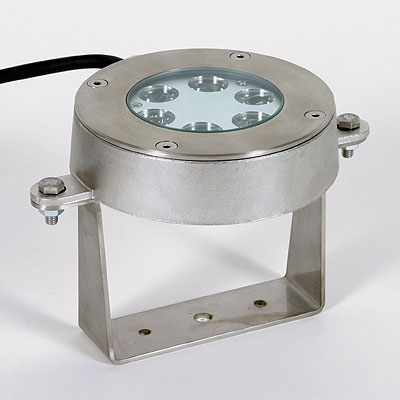

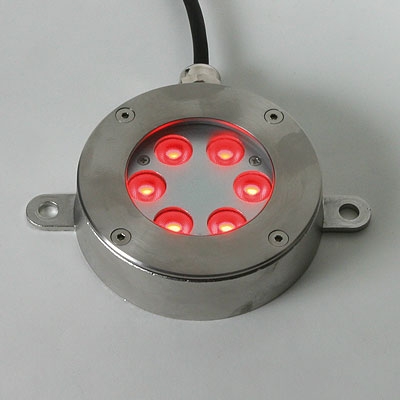

The PROLED IP68 SPOT is suitable as underwater spotlight for fountains, ponds, water gardens etc. for atmospheric or underwater lighting.
dimmable, automatic colour change, DMX 512 controllable by MBNLED RGB DMX power supplies/controller

This IP68 luminaire can not be operated out of water for over 15 minutes (cooling).



Technical Data

IP classification:
IP68 (for underwater use max. 1 m)

Power source:
24 VDC Common Cathode (CC)

Housing:
stainless steal 316, 8 mm tempered glass

Electrical connection:
1x cable 3 m H05RN-F 4x 0,75 mm² with 4-PIN IP68 connector male

Operating temperature range:
0° C till +40° C

Photometric Data

LED type:
Harvatek RGB 3-in-1 LEDs 3 Watt

Luminous flux:
red 75 Lumen
green 174 Lumen
blue 40 Lumen
r+g+b (white) 273 Lumen

Wave length:
red 623 nm
green 520 nm
blue 465 nm

Beam angle:
30°
