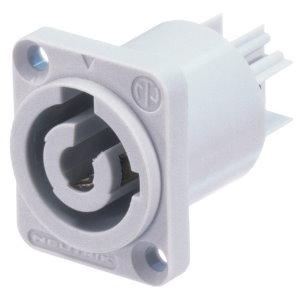

Air tight chassis connector, B-type for power-out, flat tab terminals.

The PowerCon® is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The PowerCon® is a connector without breaking capacity, i.e. the PowerCon® should not be connected or disconnected under load or live!




Features & Benefits
Lockable 3-pole equipment (AC) connector with contacts for line, neutral and pre-mating safety ground.
High current capacity, rated at 20A / 250V ac.
Fast and easy locking system
Extremely robust and reliable
Excellent cable retention
UL, C-UL recognized components
VDE and SEV approved


Product
Connector Type PowerCon
Gender male

Electrical
Contact resistance = 3 mO
Dielectric strength 4 kVdc
Insulation resistance > 0.1 GO (after damp heat test IEC 68-2-30)
Rated current per contact 20 A
Rated voltage 250 V

Mechanical
Lifetime > 1000 mating cycles
Wiring flat tabs for 3/16" (FASTON® 4.8 x 0.5 mm) or soldering
Locking device Quick Lock
Mounting direction front
Chassis shape D

Material
Contact plating 20 µm Ag
Contacts Brass (CuZn39Pb3)
Locking element Steel Ck67

Environmental
Approvals UL,VDE,Electroswiss
Flammability UL 94 HB
Protection class IP 20 (mated)
Savety requirements EN/IEC 61984
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Mobile Cables
Coding A-type for power outlet (color coding grey)
