RGB DMX Powersup. 24V 300W CA

Pris ved 1 Stk DKK 4.220,00 Inkl. moms

Pris ved 1 Stk
DKK 4.220,00

Inkl. moms

Varenummer:	805424300CA
Vægt:	3,3 Kg.
Lagerstatus:
Levering:	Lev. 3 - 5 dage

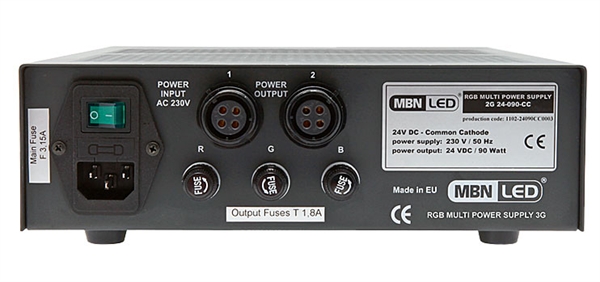

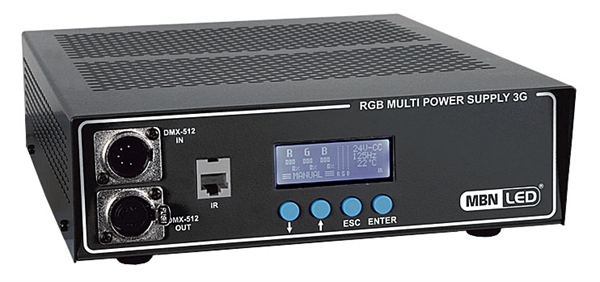

The MBNLED RGB MULTI power supplies are used as power supply for all PROLED RGB products. With the MBNLED RGB MULTI power supplies fantastic colour mixings and colour changes for the PROLED products can be achieved (by automatic programs or DMX, DALI or 1-10 V control). Any fixed colour can as well be selected and dimmed. The automatic programs can be changed by RDM with the PC-DMX/RDM INTERFACE and the software (included with the PC-DMX/RDM INTERFACE). With RDM also the configuration of the RGB DMX power supplies is possible. By using the IR receiver or RF receiver all programs can be controlled with the IR or RF remote controller.

Two versions are available:
CA (common anode – common plus) and CC (common cathode – common minus). Each version is available with output voltages of 5 Volts, 12 Volts or 24 Volts and different power ratings (50 – 300 Watt). The MBNLED RGB MULTI power supplies can also be used as 3 channel dimmer for the monochrome PROLED products.
Each power supply has three channels – R (red), G (green), B (blue)
MULTI input: DMX 512, DALI, 1-10 V controllable
Remote controllable per RDM by using the PC-DMX/RDM INTERFACE and the software
IR or RF remote controllable by using the IR INTERFACE or RF INTERFACE
16 integrated stand alone programs (changeable with the PC-DMX/RDM INTERFACE)
Each program with speed adjustment from 0,05 sec to 30 min
Each colour manually selectable and dimmable
A colour can be saved as default colour, that is automatically set after restarting the device
Selectable PWM frequency (80-1200 Hz)
Overheat protection
Master – Slave operation possible
Graphic LCD display and four operating buttons

Dimension (w x h x d): 240 x 75 x 300 mm

order code, output voltage, power, version, weight
L59553G 5V 50 Watt Common Anode* 2,8 kg
L59603G 5V 90 Watt Common Anode* 2,9 kg
L58103G 12V 90 Watt Common Anode* 2,9 kg
L57103G 12V 90 Watt Common Cathode* 2,9 kg
L58203G 12V 180 Watt Common Anode 3,0 kg
L57203G 12V 180 Watt Common Cathode 3,0 kg
L58203GS 12V 180 Watt Common Anode - Silent* 3,0 kg
L57203GS 12V 180 Watt Common Cathode - Silent* 3,0 kg
L58303G 12V 300 Watt Common Anode 3,3 kg
L57303G 12V 300 Watt Common Cathode 3,3 kg
L56103G 24V 90 Watt Common Anode 2,9 kg
L55103G 24V 90 Watt Common Cathode 2,9 kg
L56203G 24V 180 Watt Common Anode 3,0 kg
L55203G 24V 180 Watt Common Cathode 3,0 kg
L56203GS 24V 180 Watt Common Anode - Silent* 3,0 kg
L55203GS 24V 180 Watt Common Cathode - Silent* 3,0 kg
L56303G 24V 300 Watt Common Anode 3,3 kg
L55303G 24V 300 Watt Common Cathode 3,3 kg
*without fan

Download pdf manual/brochurer
