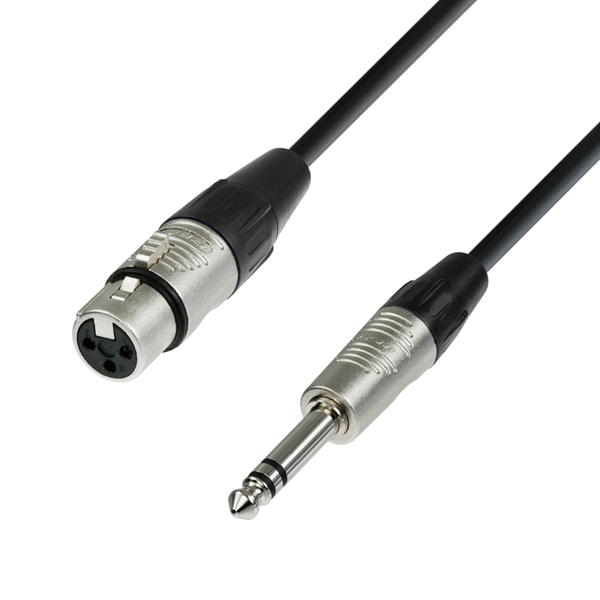

Balanced microphone or signal cable, equipped, like all cables in the K4MFP series, with female XLR plugs and 6.3 mm TRS stereo plugs by REAN © – making it the ideal choice for transmitting microphone signals to the board. The highly flexible cable has a braided shield and thus guarantees interference-free signal transmission.

Specifications:
Type: Microphone Cable
Color: black
Overall diameter: 5.8 mm +/- 0.2mm
Conductor area: 0,22 mm²
AWG (American Wire Gauge): 24
Conductor material: bare copper, OFC
Composition of conductor: 28 x 0,10 mm
Screen material: copper wire screen
Screen: spiral wound
Conductor resistance: 80 Ohm / km
Capacity: <90 pF/m
Overall jacket material: PVC mat
Plugs:
Model name: RC3F
Manufacturer: Rean
Product type: XLR Plug
Type: XLRf
Number of poles: 3
Gender: female
Cable diameter: 4 - 7 mm
Colour marking: -
Contact surface: Silver
Connection type: Solder contact
Colour: Silver
Housing: Zinc casting
Clamping sleeve: POM
Dimensions (L x Ø ): 70.0 x 19.3 mm
Model name RP3C
Manufacturer: Rean
Product type: Jack
Type: 6,3 mm
Number of poles: 3
Gender: male
Cable diameter: 4 - 7 mm
Colour marking: -
Contact surface: Nickel
Connection type: Solder contact
Colour: Silver
Housing: Zinc casting
Clamping sleeve: POM
Dimensions (L x Ø ): 85.0 x 15 mm
